dust-proof and moisture-proof wear resistant hdpe idler

Product Details:

Place of Origin:	China
Brand Name:	Anyang Honesty Tech
Certification:	ROHS/SGS
Model Number:

Payment and Shipping Terms:

Minimum Order Quantity:	200kgs
Price:	negotiation
Packaging Details:	Packed in pallets,Or according to customer requirements
Delivery Time:	10-20 working days after received your payment
Payment Terms:	T/T, L/C, Paypal, Western Union
Supply Ability:	100000kgs per month

Contact Now

Chat Now

Detailed Product Description

Diameters: 50-225mm
Wall thickness: 3-25mm
Diameter Tolerance: ±1mm
Load weight : 500-5000kg
Working life: ≥5000 hours

Dust-Proof And Moisture-Proof Wear Resistant HDPE Idler

HDPE IDLER DESCRIPTION

HDPE idler is a high-tech product, compared with metal roller , hdpe plastic roller has many obvious advantages in performance, such as high wear resistant,self lubricaiton,acid and alkali resistance, corrosion resistance, antistatic, high loading, dust-proof and moisture-proof, favored by customers. Anyang Honesty Tech HDPE idler diameter 89mm, 102mm, 108mm, 114mm, 127mm, 133mm, 140mm, 152mm, 159mm and 165mm etc. The length from 60 to2000mm. All specifications, length and color can customized. Anyang Honesty Technology, uhmwpe conveyor rollers, nylon conveyor rollers manufacutrer, good quality, high cost effective, good service and reasonable price.

HDPE IDLER FEATURES

HDPE IDLER SPECIFICATIONS

Shell Diameter	Shaft Diameter at the	Bearing Series	Material
89(3.5”)	17mm/20mm	6204	HDPE/UHMWPE
102(4”)	20mm/25mm	6204/6205	HDPE/UHMWPE
108(4.25”)	20mm/25mm	6204/6205	HDPE/UHMWPE
114(4.5”)	20mm/25mm	6204/6205	HDPE/UHMWPE
127(5”)	20mm/25mm/30mm	6204/6205/6305/6206	HDPE/UHMWPE
133(5.2”)	20mm/25mm/30mm	6204/6205/6305/6206	HDPE/UHMWPE
140(5.5”)	20mm/25mm/30mm	6205/6305/6206	HDPE/UHMWPE
152(6”)	25mm/30mm/35mm	6305/6206/6306/6207	HDPE/UHMWPE
159(6.25”)	30mm/35mm/40mm	6306/6207/6308	HDPE/UHMWPE
165(6.5”)	35mm/40mm/45mm	6206or6306/6207/630	HDPE/UHMWPE

Product structure diagram

HDPE Idler structure

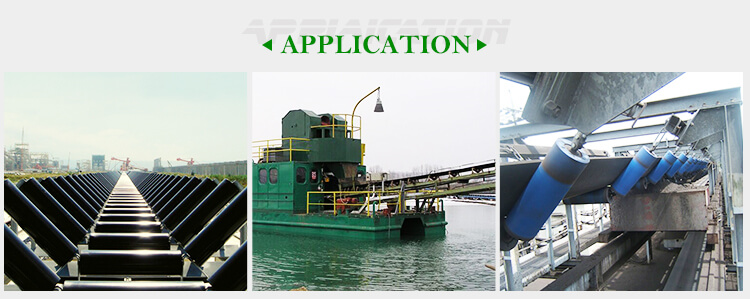

HDPE IDLER APPLICATIONS

hdpe idlers are widely used in port terminals, mine transportation, machinery and equipment, coal, power plants, coking, sugar factories because they are highly wear-resistant, self-lubricating, anti-aging, and can be used in harsh environments with strong humidity or ultraviolet rays. , salt field and other occasions.
