Diameter 152mm heavy type uhmwpe conveyor idler for mining

Product Details:

Place of Origin:	China
Brand Name:	Anyang Honesty Tech
Certification:	ROHS/SGS
Model Number:

Payment and Shipping Terms:

Minimum Order Quantity:	200kgs
Price:	negotiation
Packaging Details:	Packed in pallets,Or according to customer requirements
Delivery Time:	10-20 working days after received your payment
Payment Terms:	T/T, L/C, Paypal, Western Union
Supply Ability:	100000kgs per month

Contact Now

Chat Now

Detailed Product Description

Diameters : 50-225mm
Wall thickness: 3-25mm
Diameter Tolerance: ±1mm
Load weight : 500-5000kg
Working life: ≥5000 hours

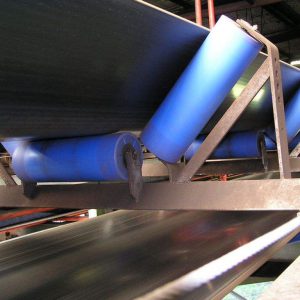

Diameter 152mm Heavy Type UHMWPE Conveyor Idler For Mining

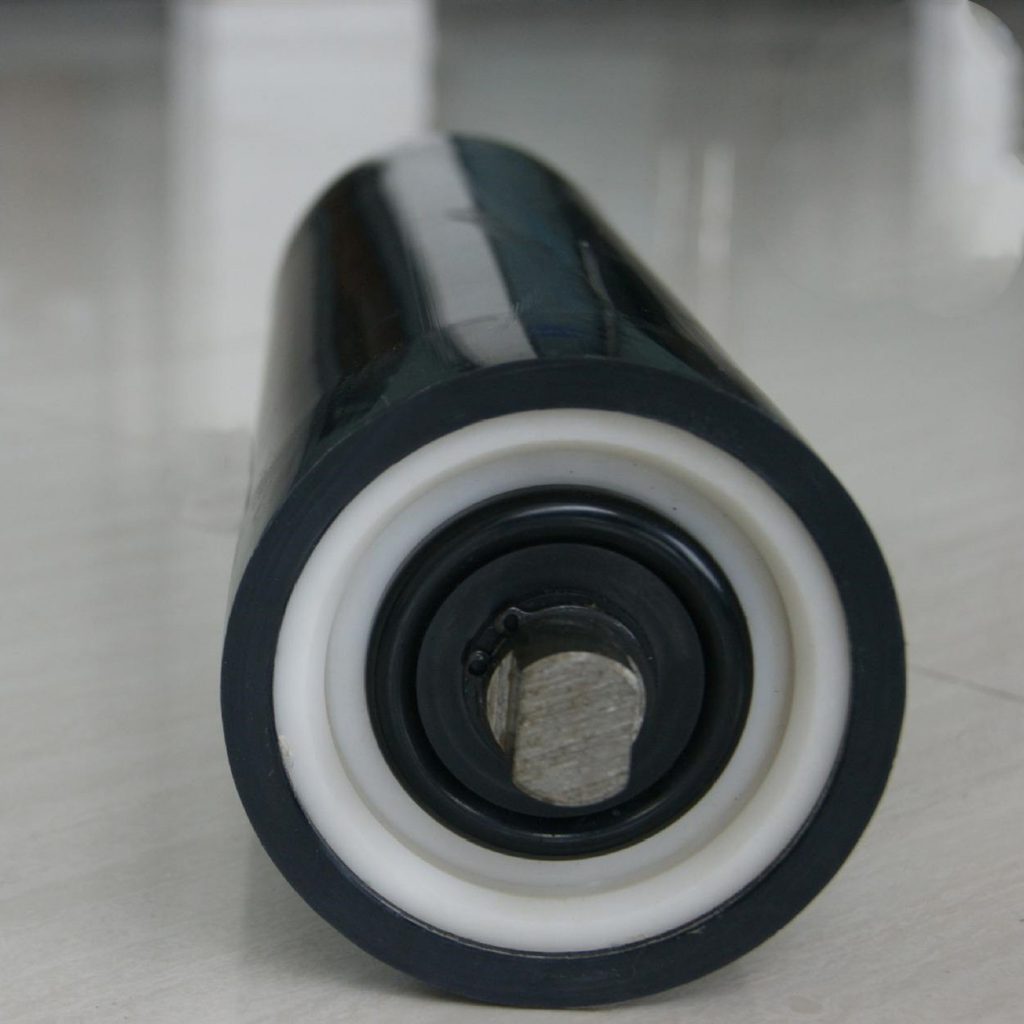

UHMWPE CONVEYOR IDLER DESCRIPTION

UHMWPE conveyor idler is a high-tech product, compared with metal roller, uhmwpe roller has many obvious advantages in performance. Anyang Honesty Tech, professional uhmwpe conveyor idler supplier, our product has wear resistant,self lubricaiton, acid and alkali resistance, corrosion resistance, antistatic, high loading, dust-proof and moisture-proof. Anyang Honesty Tech provide diameter 89mm, 114mm, 133mm, 152mm, 159mm and customized uhmwpe conveyor idler for you, it widly used for mining, sea port, steel mills, chemical plants, power plants, transmission equipment and other fields.

Diameter 152mm heavy type uhmwpe conveyor idler for mining

UHMWPE CONVEYOR IDLER FEATURES

UHMWPE CONVEYOR IDLER DATASHEET

Shell Diameter (mm)	Shaft Diameter at the Bearing	Bearing Series	Material
89(3.5”)	17mm/20mm	6204	Nylon/UHMWPE
102(4”)	20mm/25mm	6204/6205	Nylon/UHMWPE
108(4.25”)	20mm/25mm	6204/6205	Nylon/UHMWPE
114(4.5”)	20mm/25mm	6204/6205	Nylon/UHMWPE
127(5”)	20mm/25mm/30mm	6204/6205/6305/6206	Nylon/UHMWPE
133(5.2”)	20mm/25mm/30mm	6204/6205/6305/6206	Nylon/UHMWPE
140(5.5”)	25mm/30mm	6205/6305/6206	Nylon/UHMWPE
152(6”)	25mm/30mm/35mm	6305/6206/6306/6207	Nylon/UHMWPE
159(6.25”)	30mm/35mm/40mm	6306/6207/6308	Nylon/UHMWPE
165(6.5”)	35mm/40mm/45mm	6206or6306/6207/6309	Nylon/UHMWPE

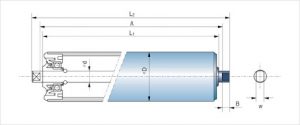

UHMWPE CONVEYOR IDLER STRUCTURE

UHMWPE CONVEYOR IDLER APPLICATIONS

uhmwpe conveyor idlers are widely used in port terminals, mine transportation, machinery and equipment, coal, power plants, coking, sugar factories because they are highly wear-resistant, self-lubricating, anti-aging, and can be used in harsh environments with strong humidity or ultraviolet rays. , salt field and other occasions.
