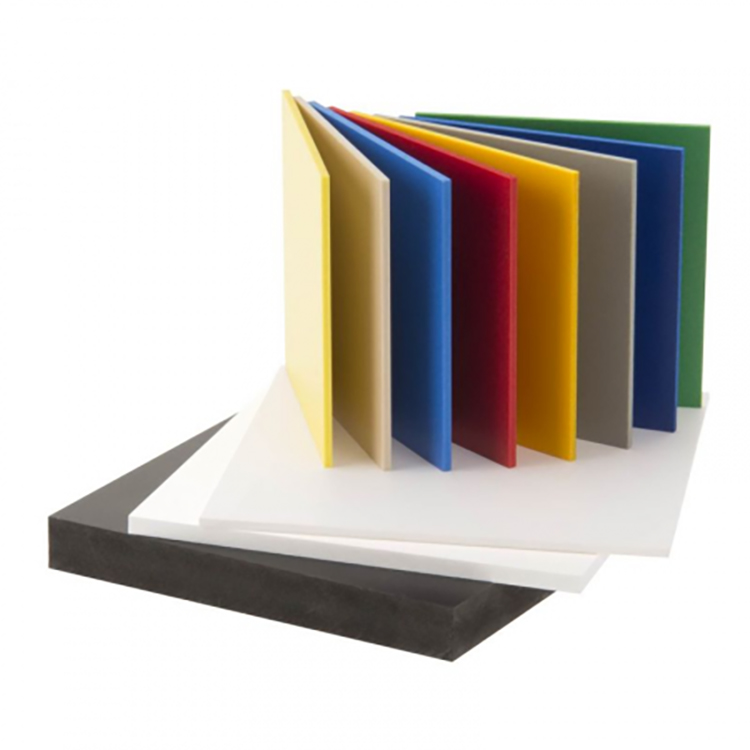

Nylon sheet has an ease of fabrication and many superior properties. Nylon sheet has found wide application for bearings, bushings, washers, seals, gears, guides, rollers, wear plates, fasteners, insulators, forming dies, sleeves, liners, cooling fans and many other parts. Nylon’s properties include high wear and abrasion resistance, with low coefficient of friction and high strength to weight ratio. Nylon has corrosion resistance to alkalis and organic chemicals. Nylon is non-abrasive to other materials, has noise dampening characteristics and is also a good electrical insulator. Anyang Honesty Tech, nylon sheet 3mm suppliers, adopt modified materials and extrusion process, excellent wear resistant and self lubrication.
Excellent wear resistance, self lubrication and small coefficient of friction.
Superior heat resistance and non-inflammability
Superior shock absorbing properties
Very good impact resistance and toughness
Good electrical properties
Excellent abrasion resistance
Good dimensional stability
Light in weight
Anti corrosive
| Item | Unit | Parameter | |
| Physical Performance | Proportion | g/cm3 | 1.14～1.16 |
| Water absorption | ％ | 0.9 | |
| Thermal Performance | Matin heatproof | ℃ | 67～74 |
| Continuous Heatproof | ℃ | 120 With lubricate | |
| Cold-resistent temperature | ℃ | -40 | |
| distortion temperature | ℃ | 120 | |
| coefficient of thermal conductivity line | w/m•℃ | 0.28～0.29 | |
| coefficient of Linear expansion | 10-5℃ | 4～7 | |
| Inflammability | self-extinguish | ||
| Mechanical Performance | Tensile Strength | MPa > | 75 |
| Tensile elastic modulus | 104MPa | 0.392(40000) | |
| Compressive Strength | MPa > | 100 | |
| Bending strength | MPa > | 140 | |
| Impact strength (unnotched) | KJ/m2 > | 510 | |
| Elongation | ％ | 20 | |
| Hardness | HPM(°) | 80～90 | |
| Fatigue strength | (107circle)kg/cm2 | 200 | |
| Coefficient of< friction | oil-free lubrication | 0.09～0.3 | |
| Electrical Performance | Volume resistance | Ωm > | 6×1012 |
| Surface resistance | Ω | 9.7×1014 | |
| Dielectric constant | 106HZ | 3.5-6.5 | |
| Dielectric loss | 106HZ | 1.5-2×10-2 | |
| Breakdown voltage | MV/m | 15 | |
specifications:
2000*1000*6-300mm
1000*1000*6-300mm
1250*2500*6-300mm
1300*2440*6-200mm
1040*2050*6-300mm
Color:white,off white,black,red,blue green……
Speicfications and colors can be customized according to customer requirements
White nylon sheet can be widely used in wear-resistant parts, screw prevention mechanical parts, chemical machinery parts, chemical equipment, transmission structure parts, household appliances parts, automobile manufacturing parts, etc.
Sleeve and slide bearings
Gears and sprockets
Support guide wheels
Conveyor rollers
Insulators
Buffer Blocks
