Good machining performance and self lubrication polyamide plastic sheet

Product Details:

Place of Origin:	China
Brand Name:	Anyang Honesty Tech
Certification:	ROHS/SGS
Model Number:

Payment and Shipping Terms:

Minimum Order Quantity:	200kgs
Price:	negotiation
Packaging Details:	Packed in pallets,Or according to customer requirements
Delivery Time:	10-20 working days after received your payment
Payment Terms:	T/T, L/C, Paypal, Western Union
Supply Ability:	100000kgs per month

Contact Now

Chat Now

Detailed Product Description

Desnsity: 1.14-1.16g/cm3
Water absorption: 0.9%
Working temperature: -40-120℃
Shore hardness: 80-85
Tensile Strength: >75Mpa

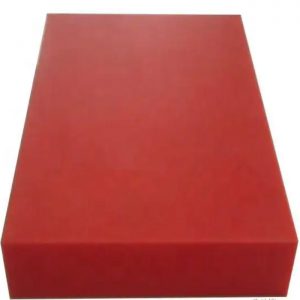

Good machining performance and self lubrication polyamide plastic sheet

POLYAMIDE PLASTIC SHEET DESCRIPTION

Polyamide plastic sheet is one of the most widely used engineering plastics. Anyang honesty Tech polyamide plastic sheet, high wear resistant, self lubrication. good machining performance, chemical resistance, good dimensional stability, high impact resistant, favored by domestic and foreign customers.

polyamide plastic sheet price

POLYAMIDE PLASTIC SHEET FEATURES

High strength and stiffness
High impact and notch impact strength

High heat deflection temperature
Good at dampening
Good abrasion resistance
Low coefficient of friction
Good chemical stability against organic solvents and fuels
Excellent electrical properties, ease of printing and dyeing
Food safe, noise reduction

POLYAMIDE PLASTIC SHEET DATASHEET

Basic	density		ASTM D-792	1.15
physical	molding shrinkage		ASTM D-955	1.5-2.0
Mechanical	bending strength		ASTM D-790	88
	Non notch impact strength of simply supported beam		ISO 179	>100
	tensile strength		ASTM D-638	62
	bending modulus		ASTM D-790	2×10
	Notched Izod impact Strength	3.2mm thick	ASTM D-256	50
	Notched impact strength of simply supported beam		ISO 179	10
Electrical	dielectric strength	2mm thick	ASTM D-149	21
	volume resistivity		ASTM D-257	10
	permittivity	10	ASTM D-150	3.1
Thermal	distortion temperature	1.82MPa	ASTM D-648	65

specifications:

2000*1000*5-300mm

1000*1000*5-300mm

1250*2500*5-300mm

1220*2440*5-200mm

1040*2050*5-300mm

Color:white,off white,black,red,blue green……

Speicfications and colors can be customized according to customer requirements

POLYAMIDE PLASTIC SHEET APPLICATIONS

Wear parts,transmission parts,home appliance parts,automotive parts,wire rod to prevent the machine parts,chemical machinery parts,chemical equipment.Such as turbine,gear,bearing,impeller,shaft,dashboard,drive shaft,valve,blades,wire rod,high pressure washers,acrews,nuts,seals,shuttle,bushing connectoor,etc.
