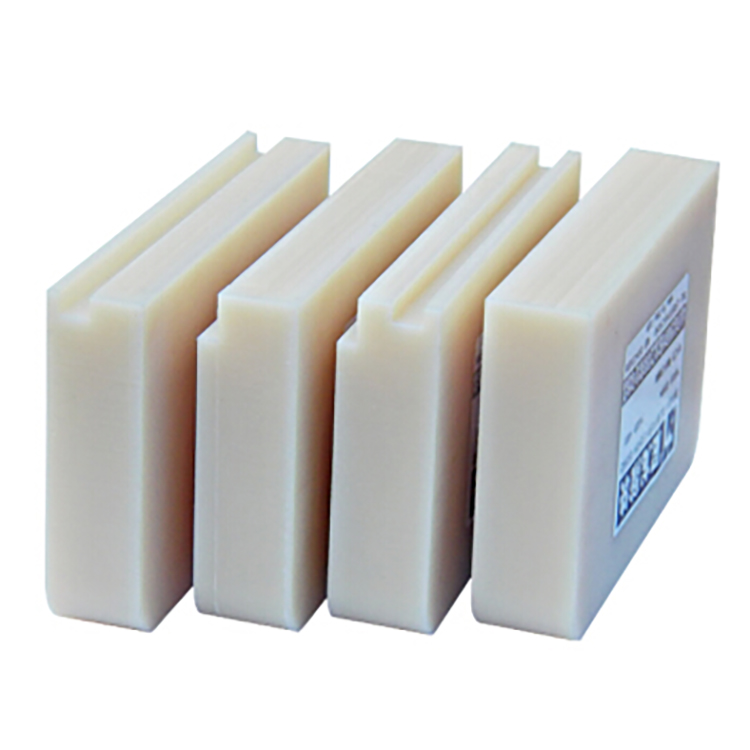

Cast nylon sheet has an ease of fabrication and many superior properties. Cast nylon sheet has found wide application for bearings, bushings, washers, seals, gears, guides, rollers, wear plates, fasteners, insulators, forming dies, sleeves, liners, cooling fans and many other parts. Anyang Honesty Tch producing 5mm to 200mm cast nylon sheet, dimensions and color all customized, our cast nylon sheet price reasonable and good features, welcome to contact and consult. Anyang Honesty Tech professional cast nylon sheet suppliers, our product price low and good performance.
High strength and stiffness
High impact and notch impact strength
High heat deflection temperature
Good at dampening
Good abrasion resistance
Low coefficient of friction
Good chemical stability against organic solvents and fuels
Excellent electrical properties, ease of printing and dyeing
Food safe, noise reduction
|
Item |
Unit |
Parameter |
|
|
Physical Performance |
Proportion |
g/cm3 |
1.14～1.16 |
|
Water absorption |
％ |
0.9 |
|
|
Thermal Performance |
Matin heatproof |
℃ |
67～74 |
|
Continuous Heatproof |
℃ |
120 With lubricate |
|
|
Cold-resistent temperature |
℃ |
-40 |
|
|
distortion temperature |
℃ |
120 |
|
|
coefficient of thermal conductivity line |
w/m•℃ |
0.28～0.29 |
|
|
coefficient of Linear expansion |
10-5℃ |
4～7 |
|
|
Inflammability |
|
self-extinguish |
|
|
Mechanical Performance |
Tensile Strength |
MPa > |
75 |
|
Tensile elastic modulus |
104MPa |
0.392(40000) |
|
|
Compressive Strength |
MPa > |
100 |
|
|
Bending strength |
MPa > |
140 |
|
|
Impact strength (unnotched) |
KJ/m2 > |
510 |
|
|
Elongation |
％ |
20 |
|
|
Hardness |
HPM(°) |
80～90 |
|
|
Fatigue strength |
(107circle)kg/cm2 |
200 |
|
|
Coefficient of< friction |
oil-free lubrication |
0.09～0.3 |
|
|
Electrical Performance |
Volume resistance |
Ωm > |
6×1012 |
|
Surface resistance |
Ω |
9.7×1014 |
|
|
Dielectric constant |
106HZ |
3.5-6.5 |
|
|
Dielectric loss |
106HZ |
1.5-2×10-2 |
|
|
Breakdown voltage |
MV/m |
15 |
|
specifications:
2000*1000*5-300mm
1000*1000*5-300mm
1250*2500*5-300mm
1220*2440*5-200mm
1040*2050*5-300mm
Color:white,off white,black,red,blue green……
Speicfications and colors can be customized according to customer requirements
