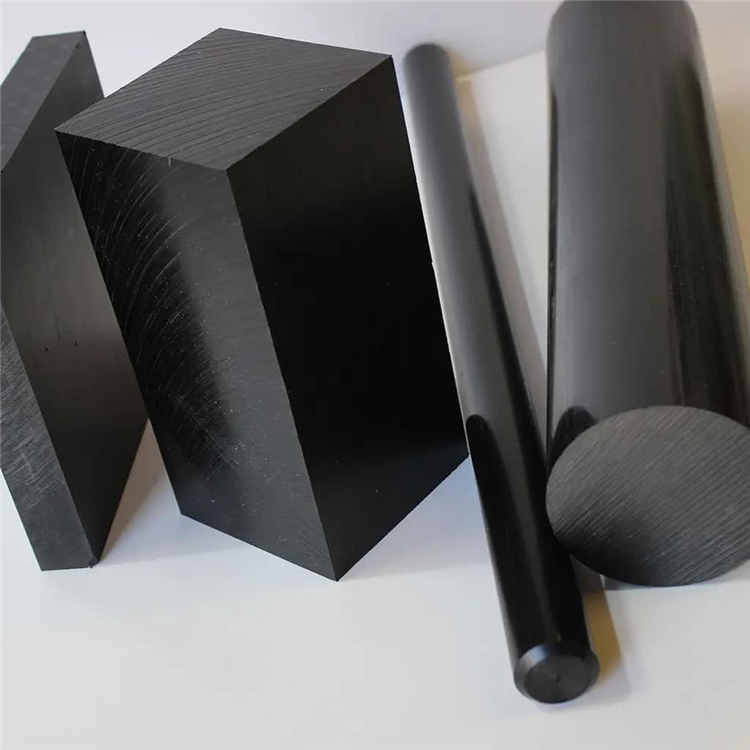

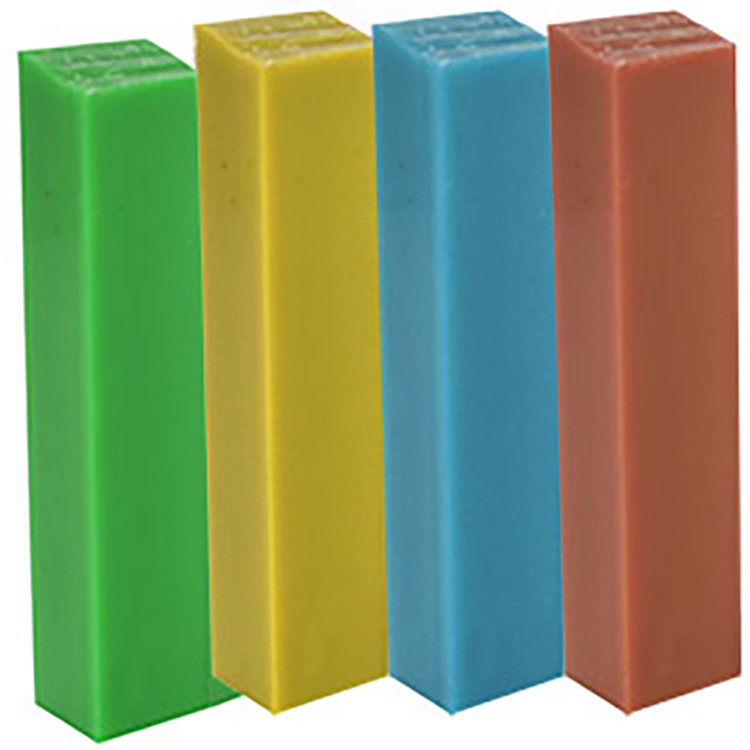

Nylon square bar has high mechanical strength, stiffness, hardness, toughness, good aging resistance, good mechanical vibration damping ability, good sliding property, excellent wear resistance, good machining performance, no creeping phenomenon when used for precise and effective control , Good anti-wear performance, good dimensional stability. Anyang Honesty Tech,adopt famous brand raw material,making natural color and other colors nylon square bar,cast technology,better wear resistant,long service life.
High mechanical strength, stiffness, hardness, toughness, good aging resistance, good mechanical damping ability, good sliding, excellent wear resistance, good mechanical processing performance, used for precise and effective control, no creep phenomenon, good wear resistance, good dimensional stability.
| TYPICAL PROPERTIES of CAST NYLONS | ||||||
|
ASTM or UL test |
Property |
Nylon 6 MC907,901 Unfilled |
Nyloil Oil-Filled |
Nylatron GSM
Moly- Filled |
Nylatron
GSM Blue Moly & Oil |
Nylatron NSM
Solid- Lube |
| PHYSICAL | ||||||
| D792 | Density (lb/in³)
(g/cm³) |
0.042
1.15 |
0.042
1.16 |
0.042
1.16 |
0.042
1.15 |
0.042
1.15 |
|
D570 |
Water Absorption, 24 hrs (%)
Saturation (%) |
0.3
7.0 |
0.5
2.5 |
0.3
7.0 |
0.22
– |
0.25
7.0 |
| MECHANICAL | ||||||
| D638 | Tensile Strength (psi) | 12,000 | 10,000 | 10,500 | 10,000 | 11,000 |
| D638 | Tensile Modulus (psi) | 400,000 | 425,000 | 400,000 | 500,000 | 410,000 |
| D638 | Tensile Elongation at Break (%) | 20 | 50 | 30 | 35 | 20 |
| D790 | Flexural Strength (psi) | 16,000 | 15,000 | 16,000 | 15,000 | 16,000 |
| D790 | Flexural Modulus (psi) | 500,000 | 425,000 | 400,000 | 425,000 | 400,000 |
| D695 | Compressive Strength (psi) | 15,000 | 13,000 | 14,000 | 13,000 | 14,000 |
| D695 | Compressive Modulus (psi) | 400,000 | 325,000 | 400,000 | 425,000 | 400,000 |
| D785 | Hardness, Rockwell R | R115 | R110 | R110 | R117 | R110 |
| D256 | IZOD Notched Impact (ft- lb/in) | 0.4 | 1.6 | 0.5 | 0.9 | 0.5 |
| THERMAL | ||||||
|
D696 |
Coefficient of Linear Thermal Expansion (x 10-5 in./in./°F) |
3.5 |
3.5 |
3.5 |
5.9 |
5.0 |
| D648 | Heat Deflection Temp (°F /
°C) at 264 psi |
200 / 93 | 350 /
177 |
200 / 93 | – | 200 / 93 |
| D3418 | Melting Temperature (°F /
°C) |
420 / 215 | 450 /
232 |
420 / 215 | 420 / 215 | 420 / 215 |
| – | Max Operating Temp (°F /
°C) |
200 / 93 | 230 /
110 |
200 / 93 | 200 / 93 | 200 / 93 |
|
C177 |
Thermal Conductivity (BTU-in/ft²-hr-°F)
(x 10-4 cal/cm-sec-°C) |
– – |
– – |
– – |
– – |
– – |
| UL94 | Flammability Rating | HB | – | HB | – | HB |
| ELECTRICAL | ||||||
| D149 | Dielectric Strength (V/mil) short time, 1/8″ thick | 500 | 550 | 400 | – | 400 |
| D150 | Dielectric Constant at 60 Hz | 3.7 | 3.7 | 3.7 | – | – |
| D150 | Dissipation Factor at 60 Hz | – | – | – | – | – |
| D257 | Volume Resistivity (ohm-
cm) at 73°F, 50% RH |
> 1013 | – | > 1013 | > 1013 | > 1013 |
Honesty Technology nylon rod specifications :
Length:1000mm-3000mm
Diameter:10-800mm
Color:according to customers need
It can be customized according to the specific requirements of customers
Nylon square bar is suitable for making wear-resistant parts, transmission structural parts, household appliances parts, automobile manufacturing parts, screw textile machinery parts, chemical machinery parts, and chemical equipment. Such as turbines, gears, bearings, impellers, cranks, instrument panels, drive shafts, valves, blades, screw rods, high-pressure washers, screws, nuts, sealing rings, shuttles, sleeves, bushing connectors, etc.
