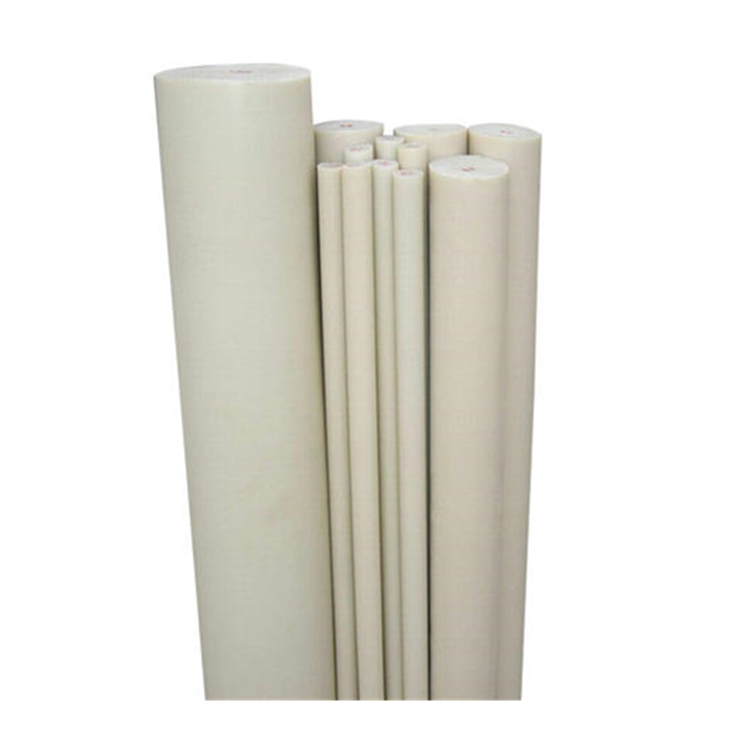

Nylon dowel rods is a special kind of nylon rod for machinery parts. Anyang Honesty Tech is a professional manufacturer with 15 years of experience in producing, researching and selling all kinds of nylon rod products, according to the different demands of customers, we can produce MC nylon rod, MC oil nylon rod, MC901 nylon rod, PA6 nylon rod, PA66 nylon rod, PA6 GF nylon rod, PA66 GF nylon rod, extrusion nylon rod diameter 15-300mm, MC nylon rod diameter 15-800mm. Anyang Honesty Tech provide all kinds of high quality and excellent wear resistant nylon dowel rods for customers.
It has light weight, high strength, self – lubrication, wear – resistant, anti-corrosion, insulation and other unique properties.
| TYPICAL PROPERTIES of CAST NYLONS | ||||||
|
ASTM or UL test |
Property |
Nylon 6 MC907,901 Unfilled |
Nyloil Oil-Filled |
Nylatron GSM
Moly- Filled |
Nylatron
GSM Blue Moly & Oil |
Nylatron NSM
Solid- Lube |
| PHYSICAL | ||||||
| D792 | Density (lb/in³)
(g/cm³) |
0.042
1.15 |
0.042
1.16 |
0.042
1.16 |
0.042
1.15 |
0.042
1.15 |
|
D570 |
Water Absorption, 24 hrs (%)
Saturation (%) |
0.3
7.0 |
0.5
2.5 |
0.3
7.0 |
0.22
– |
0.25
7.0 |
| MECHANICAL | ||||||
| D638 | Tensile Strength (psi) | 12,000 | 10,000 | 10,500 | 10,000 | 11,000 |
| D638 | Tensile Modulus (psi) | 400,000 | 425,000 | 400,000 | 500,000 | 410,000 |
| D638 | Tensile Elongation at Break (%) | 20 | 50 | 30 | 35 | 20 |
| D790 | Flexural Strength (psi) | 16,000 | 15,000 | 16,000 | 15,000 | 16,000 |
| D790 | Flexural Modulus (psi) | 500,000 | 425,000 | 400,000 | 425,000 | 400,000 |
| D695 | Compressive Strength (psi) | 15,000 | 13,000 | 14,000 | 13,000 | 14,000 |
| D695 | Compressive Modulus (psi) | 400,000 | 325,000 | 400,000 | 425,000 | 400,000 |
| D785 | Hardness, Rockwell R | R115 | R110 | R110 | R117 | R110 |
| D256 | IZOD Notched Impact (ft- lb/in) | 0.4 | 1.6 | 0.5 | 0.9 | 0.5 |
| THERMAL | ||||||
|
D696 |
Coefficient of Linear Thermal Expansion (x 10-5 in./in./°F) |
3.5 |
3.5 |
3.5 |
5.9 |
5.0 |
| D648 | Heat Deflection Temp (°F /
°C) at 264 psi |
200 / 93 | 350 /
177 |
200 / 93 | – | 200 / 93 |
| D3418 | Melting Temperature (°F /
°C) |
420 / 215 | 450 /
232 |
420 / 215 | 420 / 215 | 420 / 215 |
| – | Max Operating Temp (°F /
°C) |
200 / 93 | 230 /
110 |
200 / 93 | 200 / 93 | 200 / 93 |
|
C177 |
Thermal Conductivity (BTU-in/ft²-hr-°F)
(x 10-4 cal/cm-sec-°C) |
– – |
– – |
– – |
– – |
– – |
| UL94 | Flammability Rating | HB | – | HB | – | HB |
| ELECTRICAL | ||||||
| D149 | Dielectric Strength (V/mil) short time, 1/8″ thick | 500 | 550 | 400 | – | 400 |
| D150 | Dielectric Constant at 60 Hz | 3.7 | 3.7 | 3.7 | – | – |
| D150 | Dissipation Factor at 60 Hz | – | – | – | – | – |
| D257 | Volume Resistivity (ohm-
cm) at 73°F, 50% RH |
> 1013 | – | > 1013 | > 1013 | > 1013 |
Honesty Technology nylon rod specifications :
Length:1000mm-3000mm
Diameter:10-800mm
Color:according to customers need
It can be customized according to the specific requirements of customers
