Nylon rod is an important engineering plastic, which can replace the wear-resistant parts of mechanical equipment and copper and alloy as the wear-resistant parts of equipment. It has the characteristics of good toughness, strong wear resistance, oil resistance, earthquake resistance, good tensile and bending strength, small water absorption and good dimensional stability, so it is used to process all kinds of wear-resistant high-strength parts. It is suitable for making wear-resistant parts, transmission structural parts, household appliance parts, automobile manufacturing parts, screw rod, textile machinery parts, chemical machinery parts and chemical equipment. Such as turbine, gear, bearing, impeller, crank, instrument panel, drive shaft, valve, blade, screw rod, high-pressure washer, screw, nut , sealing ring, shuttle, sleeve, shaft sleeve connector, etc. Anyang Honesty Tech, China professional high quality cast nylon round bar suppliers, sincerely at your service!
Excellent rigidity and hardness, high impact resistance, low friction coefficient, good self-sliding performance, excellent wear resistance, excellent noise and vibration absorption performance, heat aging (applicable temperature range -40℃ to 100℃), acid and alkali resistance, non-toxic and harmless.
| TYPICAL PROPERTIES of CAST NYLONS | ||||||
|
ASTM or UL test |
Property |
Nylon 6 MC907,901 Unfilled |
Nyloil Oil-Filled |
Nylatron GSM
Moly- Filled |
Nylatron
GSM Blue Moly & Oil |
Nylatron NSM
Solid- Lube |
| PHYSICAL | ||||||
| D792 | Density (lb/in³)
(g/cm³) |
0.042
1.15 |
0.042
1.16 |
0.042
1.16 |
0.042
1.15 |
0.042
1.15 |
|
D570 |
Water Absorption, 24 hrs (%)
Saturation (%) |
0.3
7.0 |
0.5
2.5 |
0.3
7.0 |
0.22
– |
0.25
7.0 |
| MECHANICAL | ||||||
| D638 | Tensile Strength (psi) | 12,000 | 10,000 | 10,500 | 10,000 | 11,000 |
| D638 | Tensile Modulus (psi) | 400,000 | 425,000 | 400,000 | 500,000 | 410,000 |
| D638 | Tensile Elongation at Break (%) | 20 | 50 | 30 | 35 | 20 |
| D790 | Flexural Strength (psi) | 16,000 | 15,000 | 16,000 | 15,000 | 16,000 |
| D790 | Flexural Modulus (psi) | 500,000 | 425,000 | 400,000 | 425,000 | 400,000 |
| D695 | Compressive Strength (psi) | 15,000 | 13,000 | 14,000 | 13,000 | 14,000 |
| D695 | Compressive Modulus (psi) | 400,000 | 325,000 | 400,000 | 425,000 | 400,000 |
| D785 | Hardness, Rockwell R | R115 | R110 | R110 | R117 | R110 |
| D256 | IZOD Notched Impact (ft- lb/in) | 0.4 | 1.6 | 0.5 | 0.9 | 0.5 |
| THERMAL | ||||||
|
D696 |
Coefficient of Linear Thermal Expansion (x 10-5 in./in./°F) |
3.5 |
3.5 |
3.5 |
5.9 |
5.0 |
| D648 | Heat Deflection Temp (°F /
°C) at 264 psi |
200 / 93 | 350 /
177 |
200 / 93 | – | 200 / 93 |
| D3418 | Melting Temperature (°F /
°C) |
420 / 215 | 450 /
232 |
420 / 215 | 420 / 215 | 420 / 215 |
| – | Max Operating Temp (°F /
°C) |
200 / 93 | 230 /
110 |
200 / 93 | 200 / 93 | 200 / 93 |
|
C177 |
Thermal Conductivity (BTU-in/ft²-hr-°F)
(x 10-4 cal/cm-sec-°C) |
– – |
– – |
– – |
– – |
– – |
| UL94 | Flammability Rating | HB | – | HB | – | HB |
| ELECTRICAL | ||||||
| D149 | Dielectric Strength (V/mil) short time, 1/8″ thick | 500 | 550 | 400 | – | 400 |
| D150 | Dielectric Constant at 60 Hz | 3.7 | 3.7 | 3.7 | – | – |
| D150 | Dissipation Factor at 60 Hz | – | – | – | – | – |
| D257 | Volume Resistivity (ohm-
cm) at 73°F, 50% RH |
> 1013 | – | > 1013 | > 1013 | > 1013 |

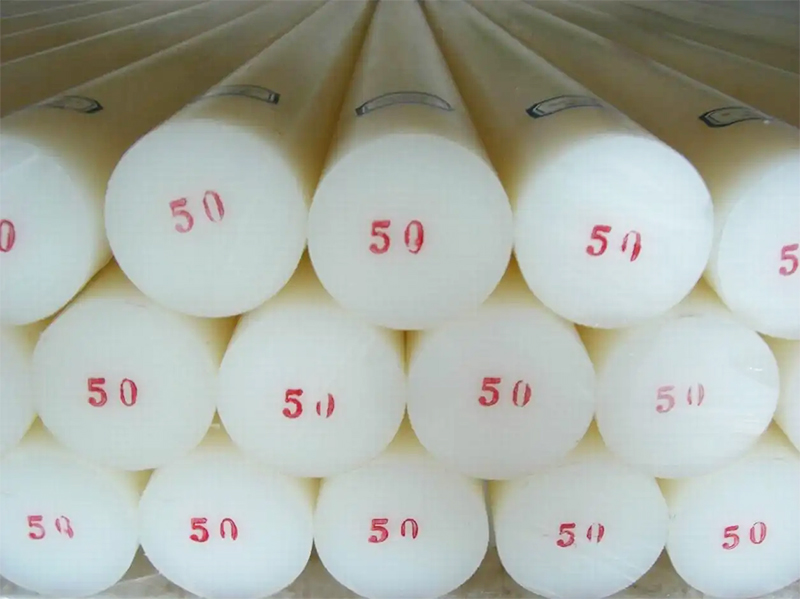

Honesty Technology nylon rod specifications :
Length:1000mm-3000mm
Diameter:10-800mm
Color:according to customers need
It can be customized according to the specific requirements of customers
