good temperature resistance and long service life cast nylon pipe

Product Details:

Place of Origin:	China
Brand Name:	Anyang Honesty Tech
Certification:	ROHS/SGS
Model Number:

Payment and Shipping Terms:

Minimum Order Quantity:	200kgs
Price:	negotiation
Packaging Details:	Packed in pallets,Or according to customer requirements
Delivery Time:	10-20 working days after received your payment
Payment Terms:	T/T, L/C, Paypal, Western Union
Supply Ability:	100000kgs per month

Contact Now

Chat Now

Detailed Product Description

Desnsity : 1.14-1.16g/cm3
Length: 1000-2000mm
OD : 50-250mm
Shore hardness: 80-85
Tensile Strength: >75Mpa

good temperature resistance and long service life cast nylon pipe

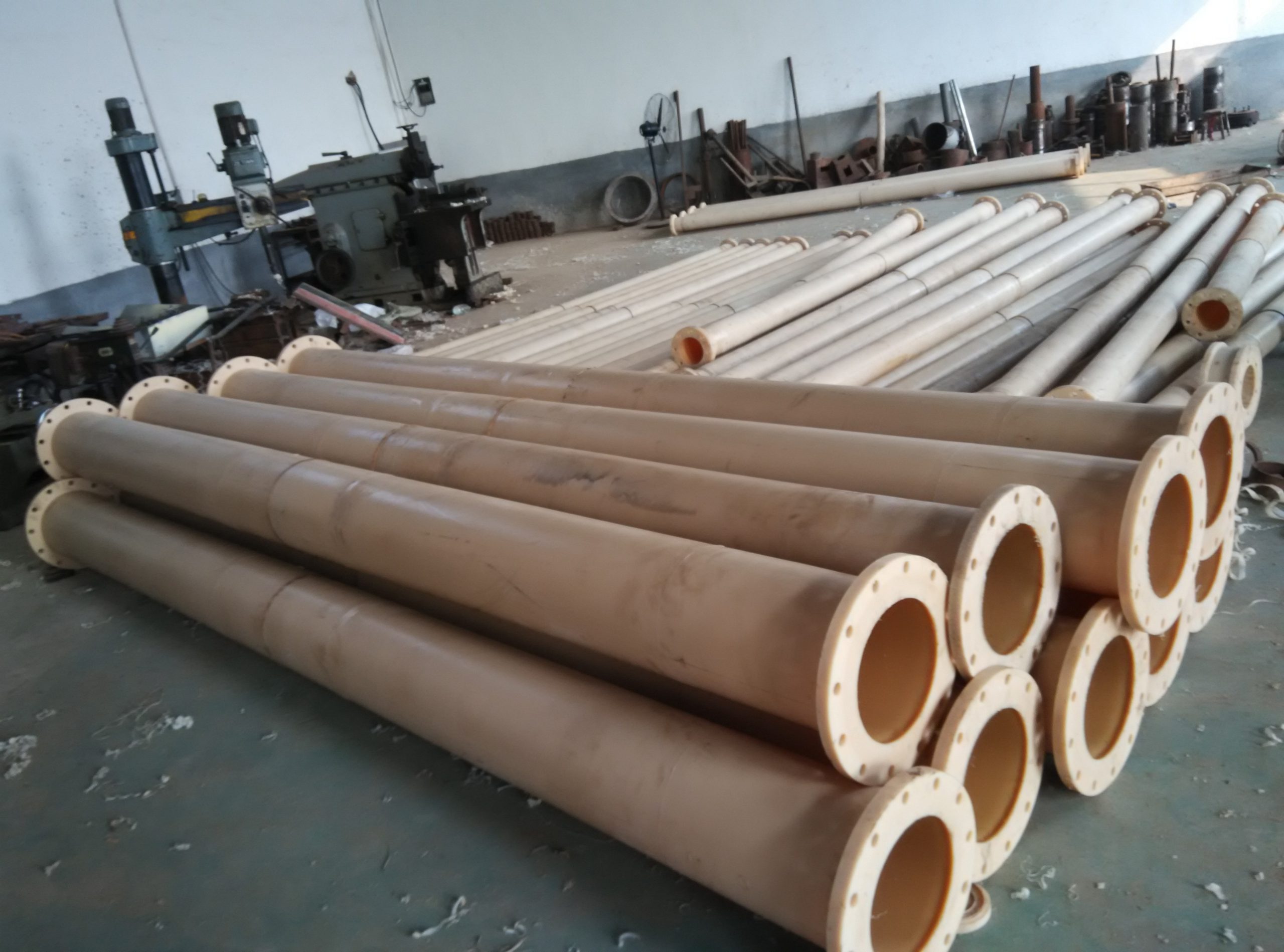

CAST NYLON PIPE DESCRIPTION

Cast nylon pipe, referred to as cast nylon tube, mc nylon pipe. It has stable dimensions, low permeability and long service life properties, it also has good temperature resistance, therefore can work in the environmentof -40-100°C.

FEATURES

cast nylon pipe has great stability against abrasion, tensile and bending properties, and is easy to install without any special tools. Its good comprehensive performance is unmatched by copper pipes, steel pipes and rubber pipes, and it is an ideal material to replace copper, steel and rubber.

TECHNICAL DATASHEET

Physical Performance	Proportion	g/cm³	1.14～1.16
	Water absorption	％	0.9
Thermal Performance	Matin heatproof	℃	67～74
	Continuous Heatproof	℃	120 With lubricate
	Cold-resistent temperature	℃	-40
	distortion temperature	℃	120
	coefficient of thermal conductivity line	w/m•℃	0.28～0.29
	coefficient of Linear expansion	10^-5℃	4～7
	Inflammability		self-extinguish
Mechanical Performance	Tensile Strength	MPa >	75
	Tensile elastic modulus	10⁴MPa	0.392(40000)
	Compressive Strength	MPa >	100
	Bending strength	MPa >	140
	Impact strength (unnotched)	KJ/m² >	510
	Elongation	％	20
	Hardness	HPM(°)	80～90
	Fatigue strength	(10⁷circle)kg/cm²	200
	Coefficient of< friction	oil-free lubrication	0.09～0.3
Electrical Performance	Volume resistance	Ωm >	6×10¹²
	Surface resistance	Ω	9.7×10¹⁴
	Dielectric constant	10⁶HZ	3.5-6.5
	Dielectric loss	10⁶HZ	1.5-2×10^-2
	Breakdown voltage	MV/m	15

APPLICAITONS

The cast nylon pipe would be adopt in instrument, blow-off lines, textile mills, food factories, fuel delivery pipes for vehicles and ships, vacuum systems, air conditioning systems and other industries.
