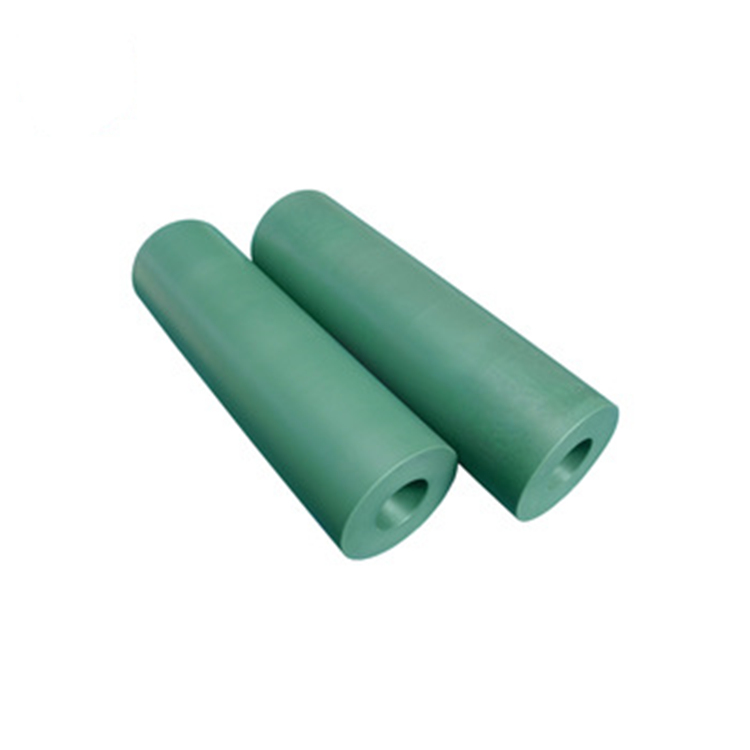

Anyang Honesty Technology is a well-known manufacturer of cast nylon tube, mc nylon tube, nylon conveyor rollers in China. The cast nylon tube has long service life, high wear -resistance, acid and alkaline resistance and high temperature resistance. Anyang Honesty Tech, provide a variety of specifications and colors cast nylon rube for clients, good quality and service, for win you trust!
1.Excellent wear resistance
2.High self lubricity
3.Excellent impact resistance
4.High temperature creep resistance and excellent low temperature resistance
5.Chemical corrosion resistance, fatigue resistance and low noise
cast nylon tube dimensions:
Diameter:89-500mm Wallthickness:8-40mm
Color: Customized
|
performance items |
testing conditions |
ways to test |
data |
|
|
Basic |
density |
ASTM D-792 |
1.15 |
|
|
physical |
molding shrinkage |
ASTM D-955 |
1.5-2.0 |
|
|
Mechanical |
bending strength |
ASTM D-790 |
88 |
|
|
|
Non notch impact strength of simply supported beam |
ISO 179 |
>100 |
|
|
|
tensile strength |
ASTM D-638 |
62 |
|
|
|
bending modulus |
ASTM D-790 |
2×10 |
|
|
|
Notched Izod impact Strength |
3.2mm thick |
ASTM D-256 |
50 |
|
|
Notched impact strength of simply supported beam |
ISO 179 |
10 |
|
|
Electrical |
dielectric strength |
2mm thick |
ASTM D-149 |
21 |
|
|
volume resistivity |
ASTM D-257 |
10 |
|
|
|
permittivity |
10 |
ASTM D-150 |
3.1 |
|
Thermal |
distortion temperature |
1.82MPa |
ASTM D-648 |
65 |
Our company cast nylon tube is suitable for turbines, gears, bearings, impellers, cranks, dashboards, drive shafts, valves, blades, screw rods, high-pressure washers, screws, nuts, sealing rings, shuttles, sleeves, bushing connectors, etc.
